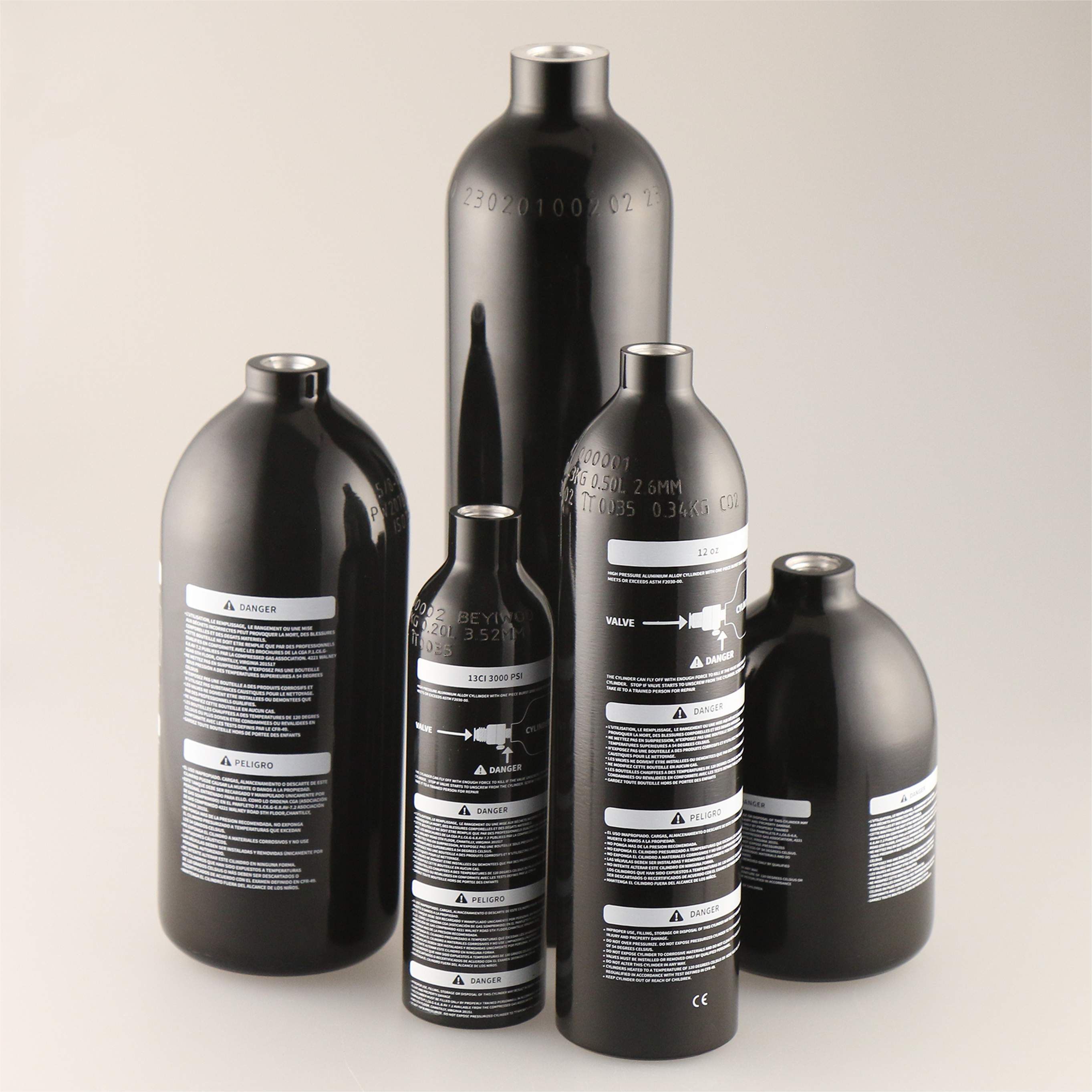

ZX TPED Aluminum Cylinder For Paintball

Short Description:

ZX aluminum cylinders are a popular choice for paintball enthusiasts, particularly those using Pcp air guns during outdoor activities.

Service Pressure: The service pressure of ZX TPED aluminum cylinder for paintball is 125bar/207bar (1800psi/3000psi).

Send email to us

Product Detail

Product Tags

DOT Approval Marks

ZX TPED aluminum cylinders are designed and made to be up to ISO7866 standard’s requirements. With a π mark on the cylinder’s shoulder stamp which is certified by TUV, ZX cylinders are sold to many countries around the world.

AA6061-T6 Material

The material to make ZX aluminum cylinders for scuba is aluminum alloy 6061-T6. The advanced spectrum analyzer are adapted for strict detecting of the material ingredients, in order to ensure the quality of it.

Cylinder Threads

5/8-18UNF.

Basic Options

Surface Finish: It’s optional for customizing the cylinder’s surface finish. We can provide several options including polishing, body painting, crown painting, etc.

Graphics: We provide services to add your own graphics or logos on the cylinders,by using labels, surface printing or shrink sleeves.

Cleaning: The cylinder cleaning is adapted by using our ultrasonic cleaners. Inside and outside of the cylinders are thoroughly washed with pure water under 70 degree temperature.

Product Advantages

Accessories: For cylinders of larger water capacity, we recommend plastic handles to make it easier to carry by hand. Plastic valve caps and dip tubes are also available as accessories for protection.

Automatic Production: Our automatic shaping machine can guarantee the smoothness of cylinder interface, thus increase the safety level. The automatic processing and assembling system enable us to have both production capacity and efficiency.

Size Customizing: Custom sizes are available, as long as it’s inside our certification range. If you want to customize, please provide the specifications so we can evaluate and provide technical drawings.

Product Specifications

125bar/1800psi
PART #	TYPE	CO2 CAPACITY	WATER VOLUME		DIAMETER	LENGTH	CYLINDER WEIGHT	SERVICE PRESSURE		TEST PRESSURE		CERTIFICATION
PART #	TYPE	oz	cu in	liters	mm	mm	kgs	bar	psi	bar	psi	CERTIFICATION
63.5-125-(0.2-1.1)L	9oz	9	23	0.38	63.5	193	0.40	125	1800	188	2700	TPED Pi/ TPE Rho
63.5-125-(0.2-1.1)L	12oz	12	31	0.50	63.5	240	0.43	125	1800	188	2700
81.5-125-(0.3-1.5)L	16oz	16	40	0.65	81.5	200	0.61	125	1800	188	2700
	20oz	20	51	0.83	81.5	246	0.78	125	1800	188	2700
	24oz	24	60	0.98	81.5	256	0.85	125	1800	188	2700
Custom dimension/thread/finish available upon request

207bar/3000psi
PART #	TYPE	CO2 CAPACITY	WATER VOLUME		DIAMETER	LENGTH	CYLINDER WEIGHT	SERVICE PRESSURE		TEST PRESSURE		CERTIFICATION
PART #	TYPE	oz	cu in	liters	mm	mm	kgs	bar	psi	bar	psi	CERTIFICATION
51-207-(0.1-0.6)L	10ci	4	10	0.16	51	150	0.27	207	3000	311	4500	TPED Pi/ TPE Rho/ DOT Approval
	13ci	5	12	0.21	51	190	0.30	207	3000	311	4500
	22ci	8	22	0.35	51	285	0.48	207	3000	311	4500
89-207-(0.3-2.1)L	26ci	10	26	0.42	89	148	0.79	207	3000	311	4500
	30ci	12	30	0.50	89	174	0.91	207	3000	311	4500
	48ci	19	48	0.79	89	220	1.13	207	3000	311	4500
	62ci	24	62	1.00	89	285	1.42	207	3000	311	4500
Custom dimension/thread/finish available upon request

Custom size is available with the DOT/TPED certified range.
