CGA870 Medical Valve(200111077)

Short Description:

Automated testing process under ISO9001 ensures quality.

High leak integrity performance through 100% tests.

Positive operation can be achieved by mechanical link of the upper and lower spindle.

Safety relief device is equiped for relieving gas while there is excessive pressure.Tempreture relief is also available.

Quick and easy operation due to ergonomic design.

Heavy-duty forged brass body for durability and high pressure.


Product Detail

Product Tags

CGA870 Medical Valve(200111077)

Inlet Thread: 3/4-16UNF

Outlet Thread: CGA870

Working Pressure: 3000PSI

Safety Device: 4060-4785PSI 73±3℃

Gas Type: O2

DN: 1.5

Product Features

Automatic testing process line under ISO9001 can ensure the product quality.

High leak-integrity performance is guaranteed through 100% tests among batches.

Positive operation can be achieved by mechanical link of the upper and lower spindle.

Safety-relief device is equipped for relieving gas while there is excessive pressure.Temperature relief is also available.

Quick and easy manual operation with the help of ergonomic designing.

Heavy-duty forged brass body are made for durability and high pressure.

Why Choose Us

1. ZX Gas valves cover a variety of range, fully meets the different application requirements of customers.

2. To come up with the updating new demands of customers, ZX research & development department is capable of designing new products to meet them.

3. You can directly contact with our professional sales engineer to get both business and technical services directly from the manufacturer.

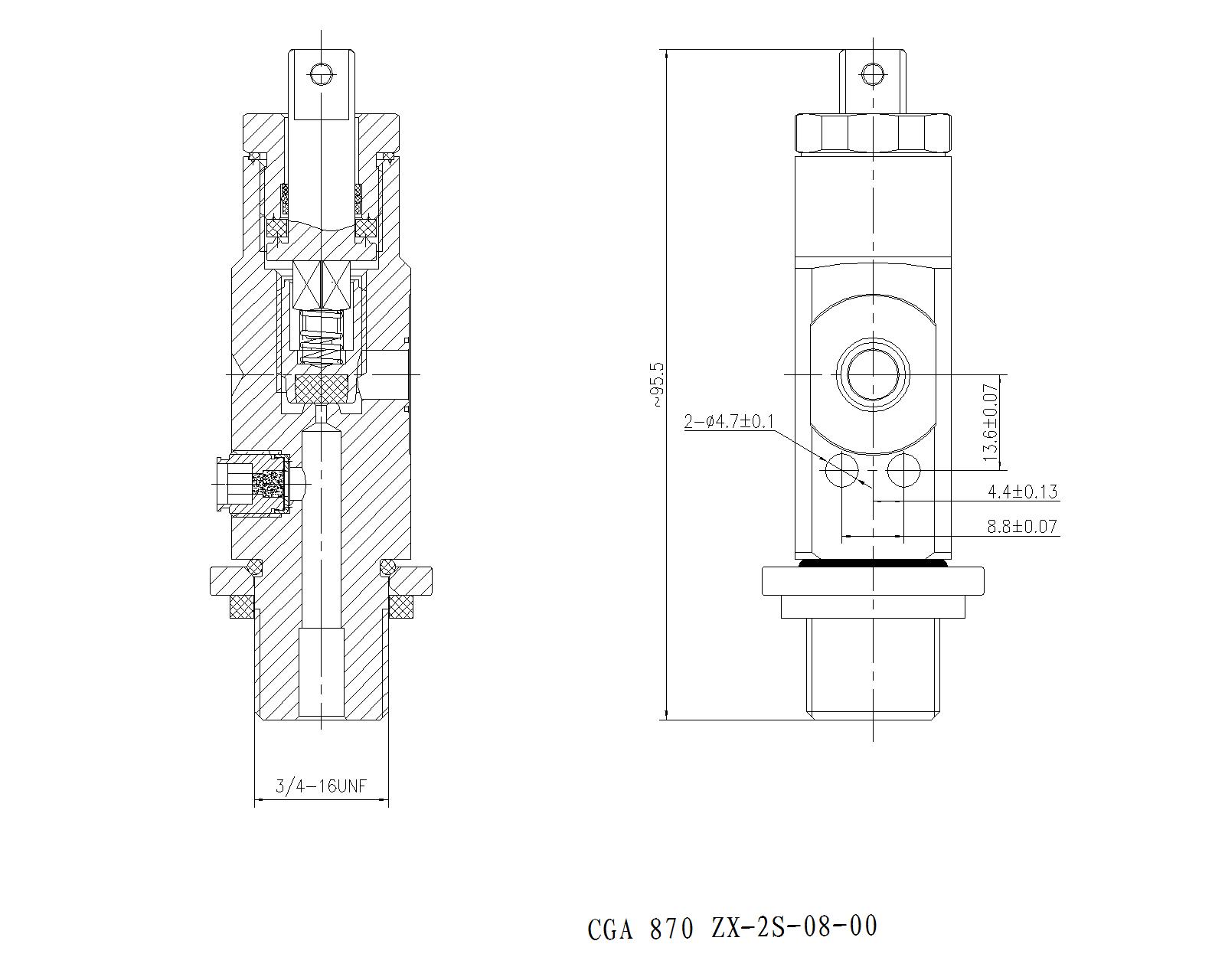

Product Drawing

ZX-2S-08-00
IMG_2811-1
